DF95 V3

Dragon Flite 95 V3 Racing Class RC Sailboat

Model No.: 8811V3(DF95V3)


SPECIFICATIONS:

Length: 950 mm
Width: 125 mm
Rig Height: 1050 mm
Overall Height: 1470 mm
RTR Total weight: 2000g (Batteries not included)
Sail Area (Mainsail): 2314 cm²
Sail Area (Jib): 1422 cm²
Sail Area (Overall): 3736 cm²
Hull Material: Molded plastic with painted finish and logo sticker

Supplied in two versions:
(1) RTR version(8811V3) with transmitter & receiver
(2) ARTR version(8811V3A) with no radio gear
RTR version with radio gear (8811V3) requires 4pcs AA batteries for transmitter & 4 pcs AA batteries for receiver

WHAT'S INCLUDED:

Fully Painted, Moulded Plastic Hull
50 micron mylar film racing sails with painted flow stripes and logo
Moulded carbonfibre keel with zinc ballast bulb
Metal geared digital rudder servo
2025 New Digital DF Racing sailwinch servo for more accurate sail control

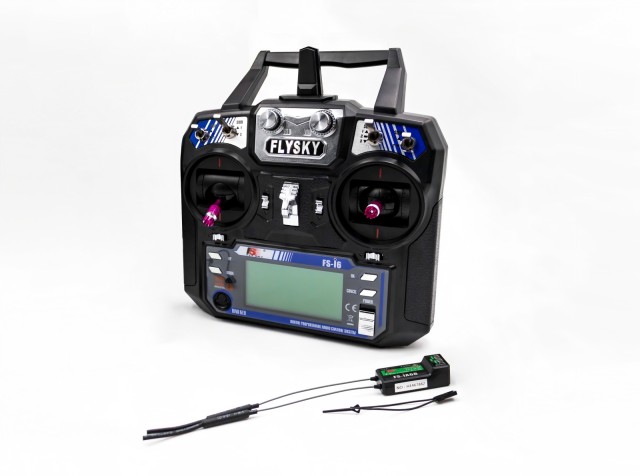

2.4GHz Flysky i6 transmitter (RTR version 8811V3 only)
2.4GHz FS-iA6B receiver (RTR version 8811V3 only)

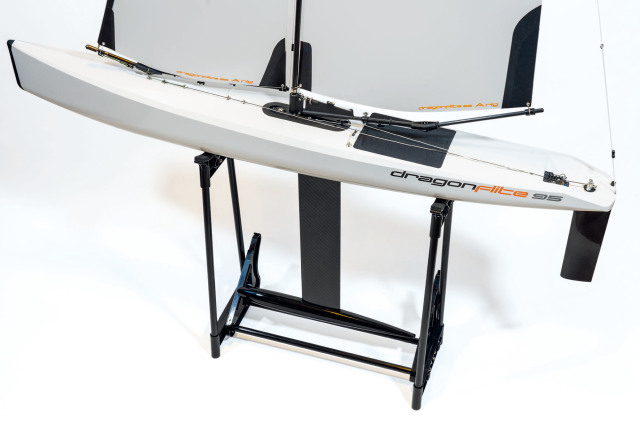

Display stand with laydown function (Moulded plastic and glassfibre tubes)

REQUIREMENTS:

4pcs of AA Alkaline batteries for Transmitter (Not included)
4pcs of AA Alkaline batteries for Receiver (Not included)

MEASUREMENT:

Gift Box Dimention: 105 x 3.8 x 13.2 cm
2 pcs/Carton (39.5 x 28 x 107 cm)
20' container: 482pcs/241 ctns
40' container: 990pcs/495 ctns

For more information about DF95 racing class, visit: www.dfracing.world

DF95V3 New Version Changes Details

The DF International Class Association (DFICA) and the licenced builder, Joysway Hobby International Ltd, are pleased to announce the release of new versions of both DF65 and DF95 classes.

The changes to apply from 1st February 2025, are the result of feedback from DFICA members and in consultation with the Joysway engineering team to continue to improve the quality and reliability of the boats.

The fundamental aim of the Class and its Rules is to ensure that all boats are raced on a level performance basis. The Restricted Class Rules means that no changes are allowed to the boats unless specifically allowed and documented in the Rules, or an interpretation has been issued by the DFICA Rules Committee to cover any manufacturing changes.

The changes will not affect performance of the boats but do improve the build quality for greater enjoyment by owners.

DF95V3 changes details and photos refer to below:

NOTE:All new parts will be available to retro fit on previous versions.

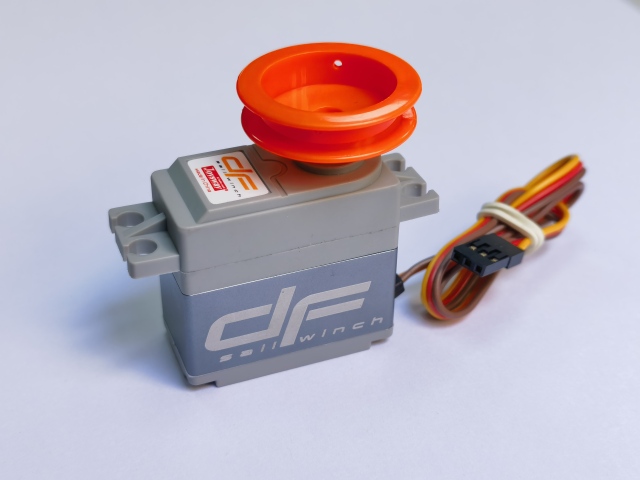

1) Digital Winch – A new digital winch will replace the current grey DF Sail winch. Testing has shown a more consistent performance and end point accuracy.
The new winch fits the existing DF winch drums and the winch speed is the same as the outgoing model.

2) Power Switch – A new mounting plate and a slightly modified servo tray has been produced to allow the switch to be fitted from the top of the tray. In previous versions,
the tray had to be removed to fit the switch from the underside.

3) Bearings – Will have better quality stainless steel to reduce potential for rust. (Regular lubrication will still be required for smooth operation)



4) Tray Attachment Screws – Flat head screws have replaced the countersunk head screws to prevent cracking around the screw head.



5) DF95 Hatch Cover – The new screws will require a slight modification to the clear plastic hatch for a correct fit.



6) Jib Boom Rear Plug – The boom rear plug has been replaced with a new plug containing an external hole for attaching the Jib Topping Lift.



7) Mainsheet Bridle Plate - The plate that attaches to the keel bolt and holds the bridle ring forward has been strengthened by increasing the thickness of the plate.



8) Rudder Servo Arm – The existing servo arm has been replaced by a stronger nylon version.



9) Mast Deck Sliding Plate – The plate has been slightly increased in size to eliminate any excess movement.
Mast Deck Slide Plate Bolt and Nut – These have been replaced with 316 stainless steel.



10) Jib Forestay Wire – A better quality stainless steel forestay is supplied and has been shortened to allow a greater range of adjustment of the forestay bowsie.



11) Jib Luff Sail Eyelets – These have been moved closer to the jib tack for a smoother sail shape at the tack. Thinner copper clamps will be replaced on the wire loops to prevent slippage.



12) Winch Tension Line Elastic – Has been replaced with a better quality product.

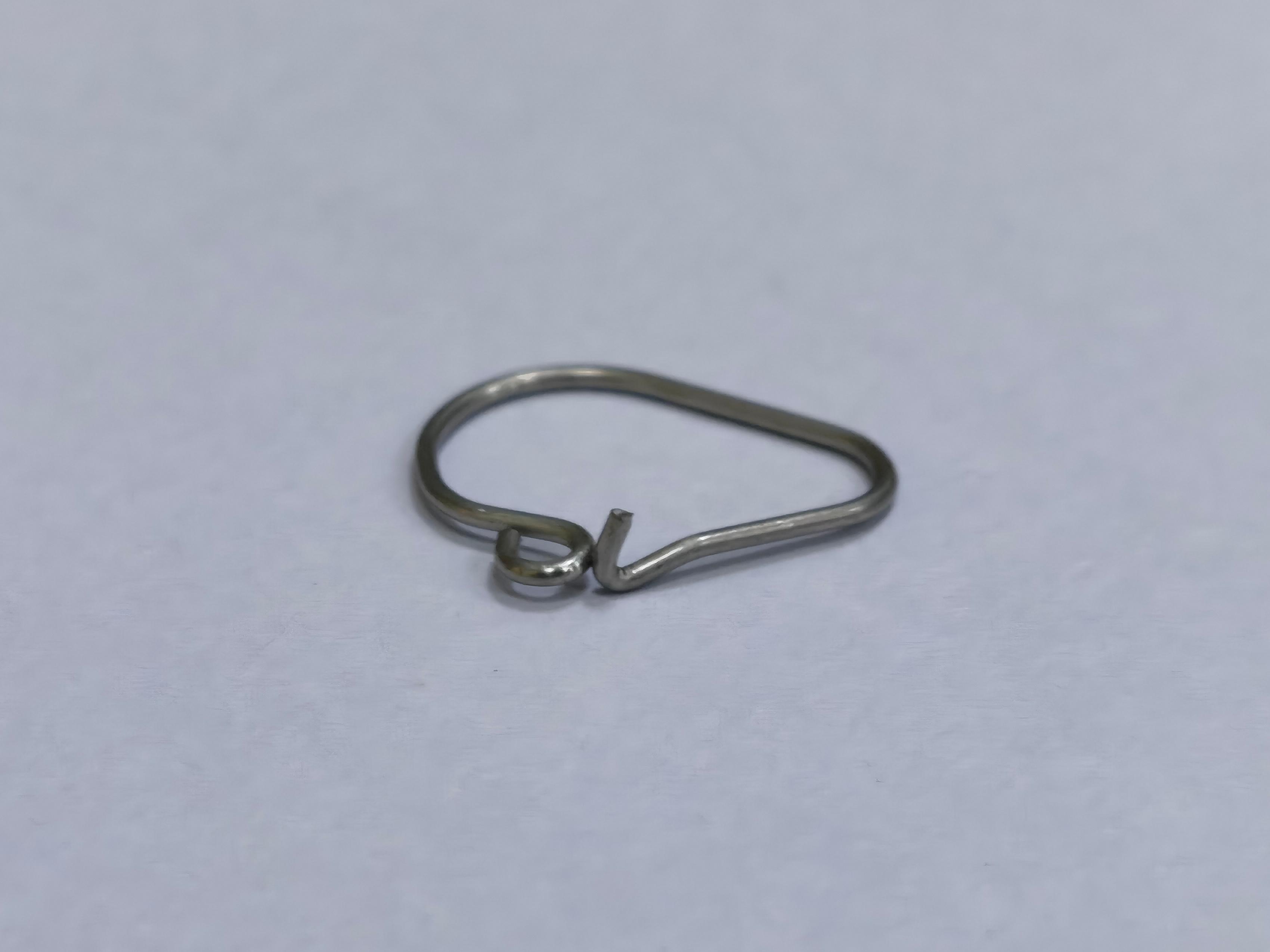

13) Wire Luff Rings – The shape has been improved for a more secure fitting.



14) Mast Stub and Collar – The tube diameter have been increased slightly for a better fit in the mast tube and the collar positioning will be more consistant.



15) Deck Hatch Cover Patch – Has been redesigned to allow visibility into the tray.



16) Sail Corner Reinforcement Patches – Addition of a second layer of patch material for increased corner stiffness.

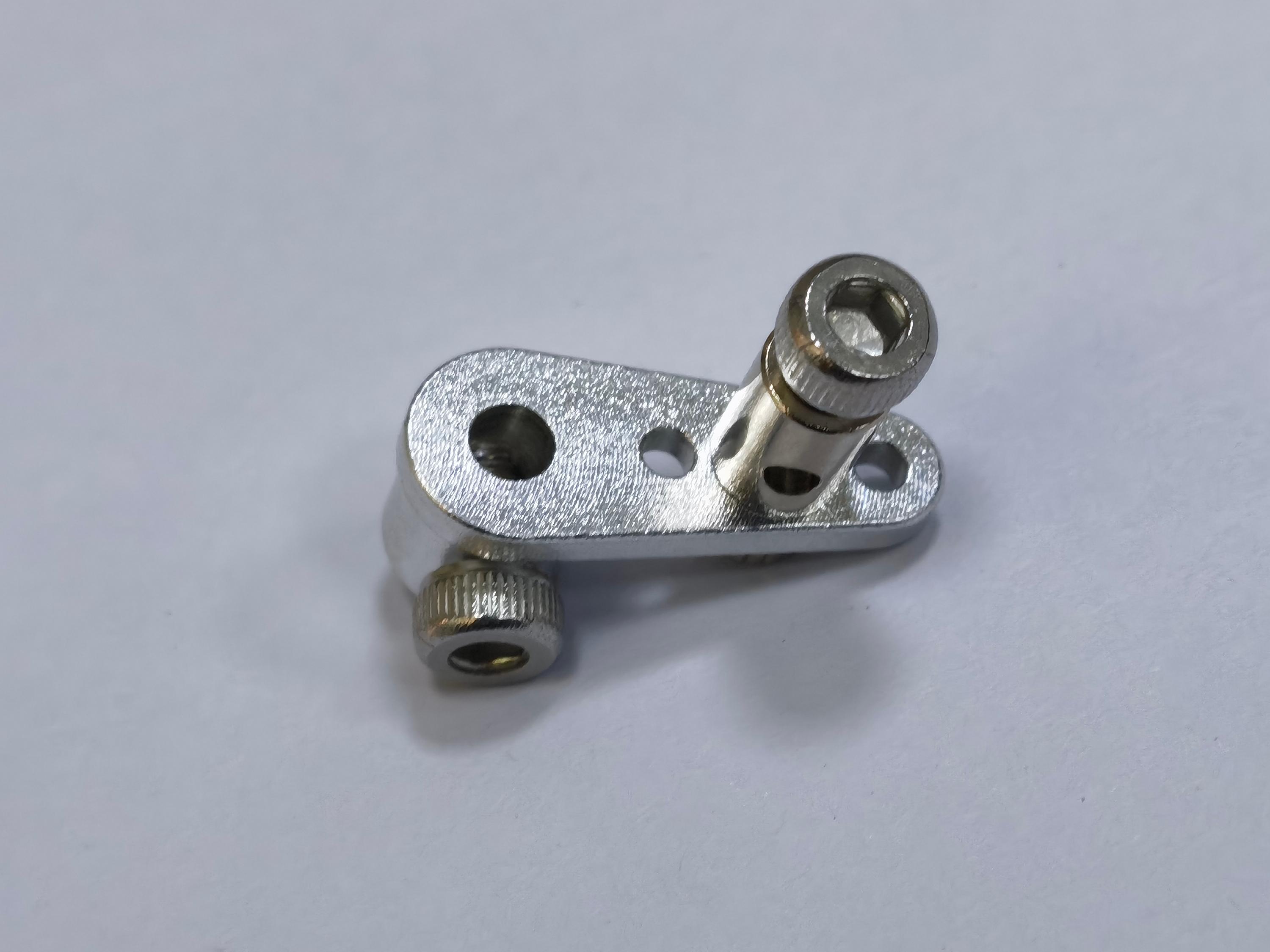

17) Metal Rudder Arm – The hole for the clevis has been reduced slightly for a tighter fit removing any slop in the linkages.
